DI-300MW

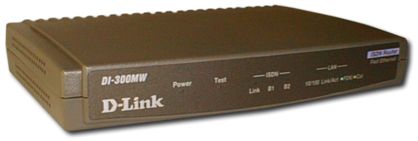

D-Link DI-300MW 10/100Mbps Dual-Speed ISDN Router (IP/IPX)

10/100Mbps Dual-Speed ISDN Router

The D-Link DI-300MW is a single port 10/100Mb Dual-Speed ISDN Router. It provides the perfect Internet access and branch office solution. The DI-300MW is squarely targeted at small and medium businesses and home office users. Simple and quick to install, but with all the power of more expensive routers, it provides the necessary advanced technology and functions for multi-user ISDN Internet access and small branch office or home office connection to the corporate WAN.

NAT, DHCP, TCP/IP, IPX, and More!

The integrated support for Network Address Translator (NAT) and DHCP allows the DI-300MW to share a single ISDN Internet Account IP address among a network's users, eliminating the expense of multiple ISP accounts. As a fully functional and affordable ISDN router, it can also be used to cost-effectively connect branch and home offices to a corporate TCP/IP or IPX-based network. It allows the home or branch office user to take advantage of the speed and availability of ISDN to improve productivity and the quality of their remote access.

Dual-Speed Ethernet

A single Dual-Speed Ethernet port automatically connects to the LAN at the highest supported speed. The WAN ISDN U interface supports such advanced features as Connect-on-Demand with protocol spoofing, Bandwidth-on-Demand with BACP/BAP, dual simultaneous location connection (1 ISDN channel per location), and ISDN leased-line support. With dual ISDN channel support, uncompressed data speeds of 128 Kbps and compressed data speeds up to 768 Kbps can be expected.

Security: SNMP, Firewall, etc.

THE DI-300MW's features concentrate on easy of use, Internet/WAN security and the cost-effective use of ISDN services. Integrated SNMP management and both local and remote Telnet allow simple setup and troubleshooting. PAP/CHAP/MS CHAP authentication protocols, a built in firewall, Proxy ARP, RADIUS, and RIP-2 support all combine to ensure a secure wide area connection. Fi/fn LZS (STAC) compression, BACP/BAP, Connect-on-Demand, and IP/IPX spoofing minimize your connection time to save on ISDN toll charges.

The DI-300MW incorporates the leading industry standards for data compression, security, wide protocol support, and bandwidth management to provide a well-rounded, stable, and cost-effective routing solution.

Technical Specifications

Standards

LAN Interface

Protocols Supported

Compression

ISDN Interface

IP Service

Security

Management

Bandwidth Conservation

Firmware
